MPE306.1 Handheld Controller & MPE305 Adapter
Local tools for configuring compatible overhead indicators and handling the indicator during installation. The controller and mechanical adapter have different roles and should be specified separately.
MPE306.1: local access to the indicator
The catalogue identifies the handheld PDA as MPE306.1. It communicates with the MPE308.1 indicator over a 433 MHz link and is described as reading operating parameters, changing settings, resetting indication and reading online current. Confirm the supported firmware, available menus and access controls with the offered equipment.
Use in commissioning and maintenance
A local controller can help technicians verify device identity, read settings and check a reset command before a device enters service. Record initial settings and test results against the feeder and phase. Keep configuration changes under the utility or site operating procedure so a local adjustment does not conflict with the approved protection and monitoring plan.

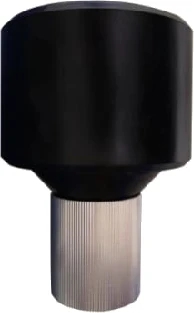

MPE305: mechanical installation adapter
The brochure identifies the MPE305 as the fitting used to handle an indicator with a telescopic insulating pole. The illustrated interface is M33 × 2. A matching thread alone does not establish suitability: the adapter, pole, indicator clamp and operating method must form an approved combination. The brochure notes that the telescopic pole is separately sourced.
What to include in the supply schedule
Specify controller quantity, compatible FPI revisions, adapter quantity and the exact telescopic-pole arrangement. The document does not provide a complete PDA specification, including ingress rating, battery endurance, operating temperature or storage capacity. Those details should be obtained before approval rather than inferred from the FPI ratings.
Technical data and selection notes
Values below are transcribed or paraphrased from the supplied manufacturer catalogue. Entries marked for confirmation must be settled in the offered data sheet and approved project documents.
| Handheld model | MPE306.1 |
|---|---|
| Compatible indicator | MPE308.1 as described in the catalogue |
| Wireless link | 433 MHz |
| Listed functions | Read / adjust parameters, reset indicator, read current |
| Mechanical adapter | MPE305 |
| Illustrated pole connection | M33 × 2 thread |
| Insulating pole | Separately sourced; suitability and rating require review |
| Missing PDA ratings | Battery, IP rating, environmental limits and range not defined in the supplied catalogue |
Mechanical installation adapter
